Product Description

Futaba TX - Futaba 26SZ w/ R7208SB Receiver - FUT5003225

The latest high-end 26-channel mid-range RC kit using the FASSTest-2.4GHz telemetry transmission system for sports and very advanced recreational modelers and their simple, complex and giant models. The transmitter can also be switched to T-FHSS Air (also telemetric) and S-FHSS transmission modes to use a wide range of Futaba air receivers with and without telemetry.

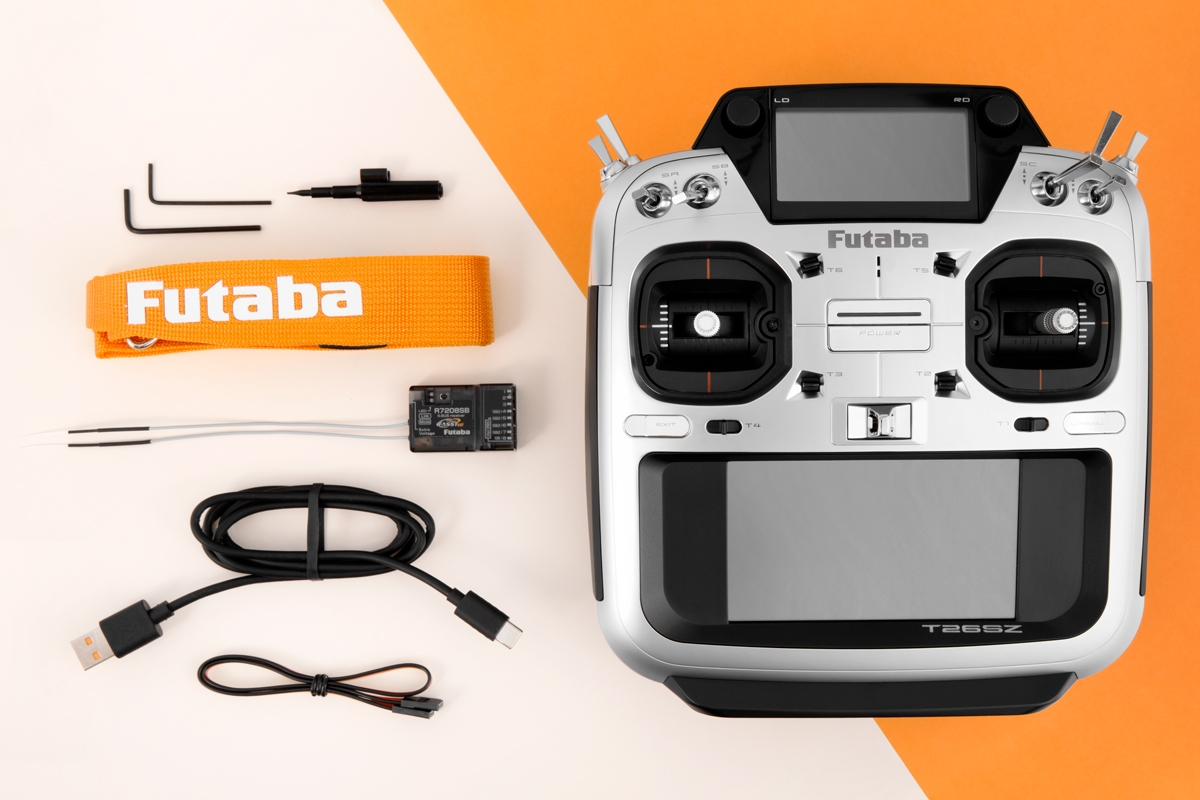

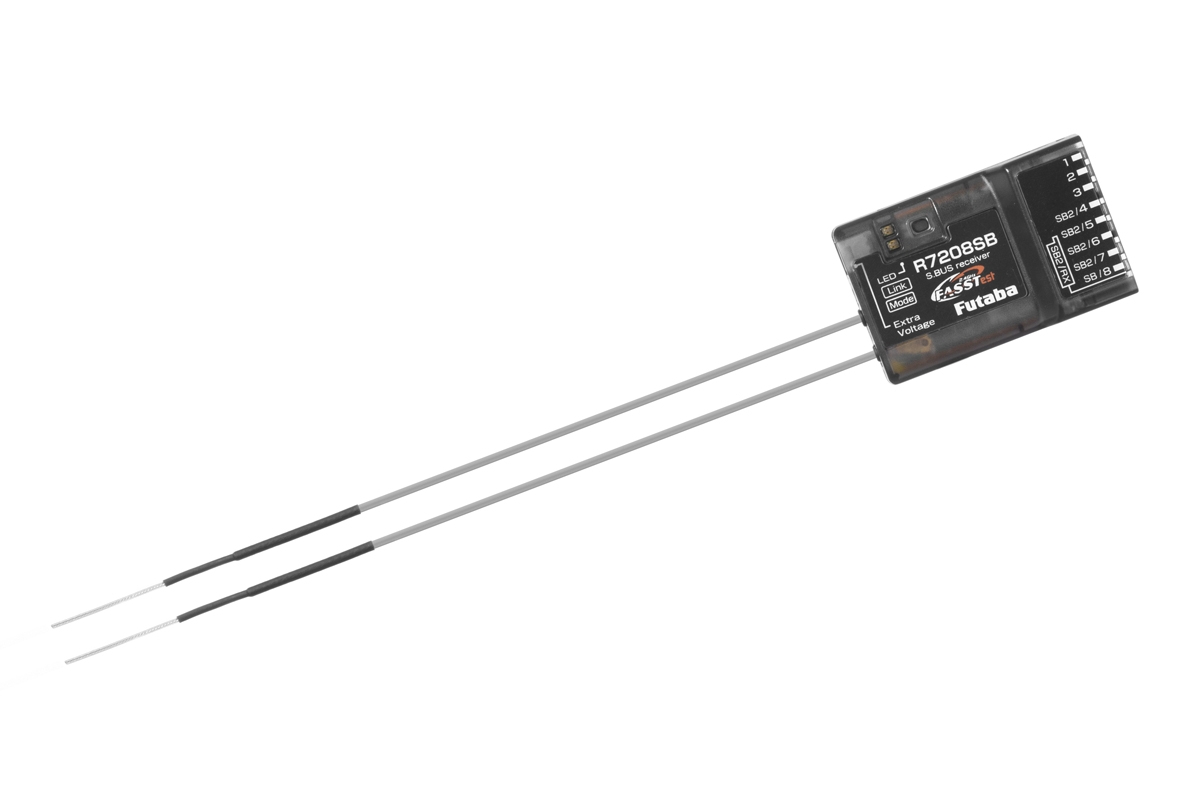

With the R7208SB receiver included in the kit, you have 8 PWM channels for classic servos (or up to 26 channels when using 2 or 3 receiver mode) or a full 26 channels via the S.BUS and S.BUS2 buses; as well as telemetry data on the receiver's supply voltage, the voltage of another external (e.g. drive) accumulator and the strength of the signal captured by the receiver. You can obtain additional telemetry data from additional telemetry sensors connected to the S.BUS2 bus.

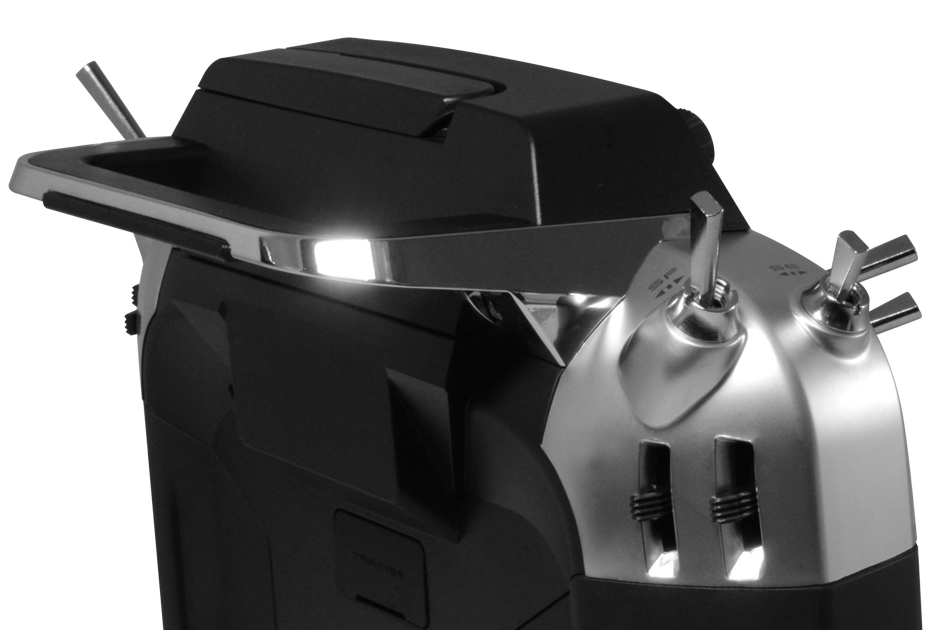

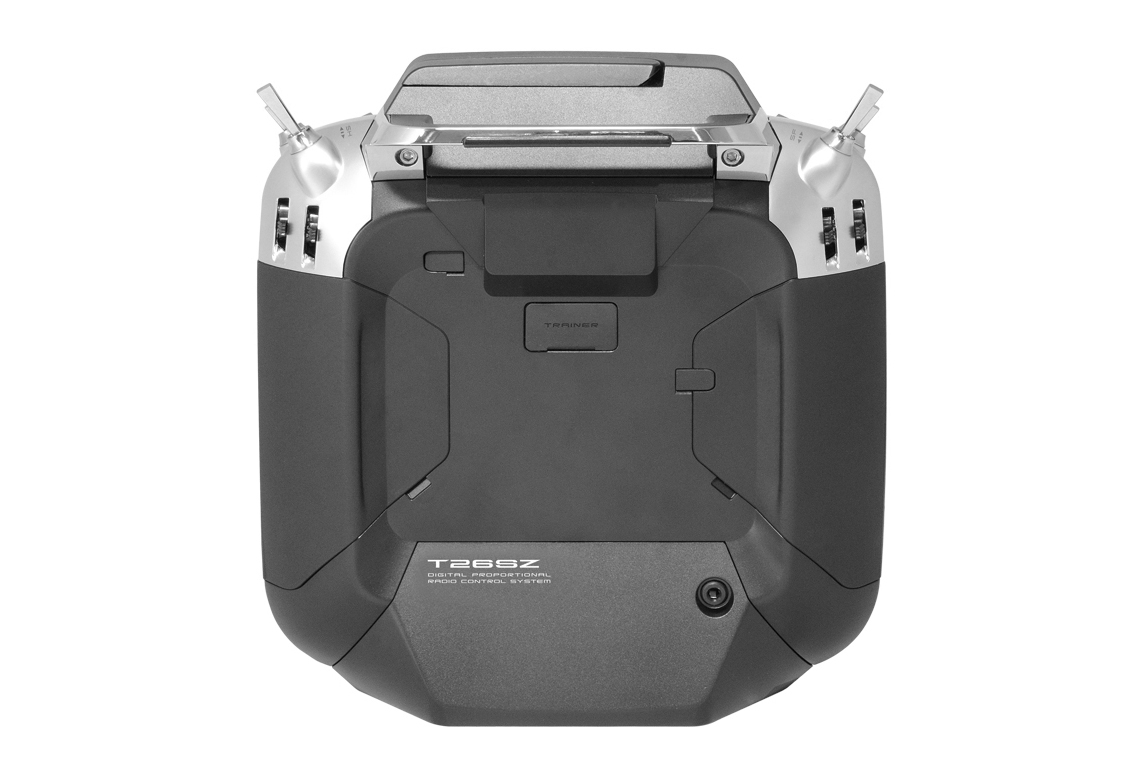

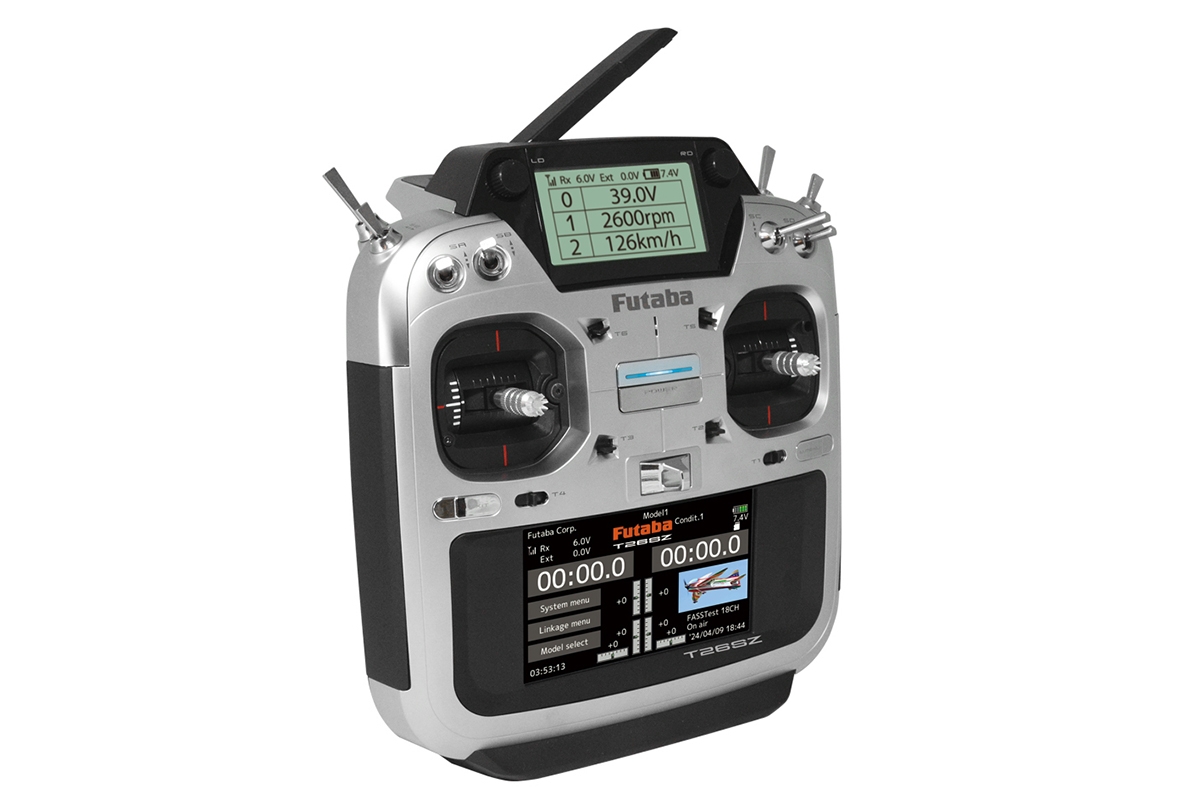

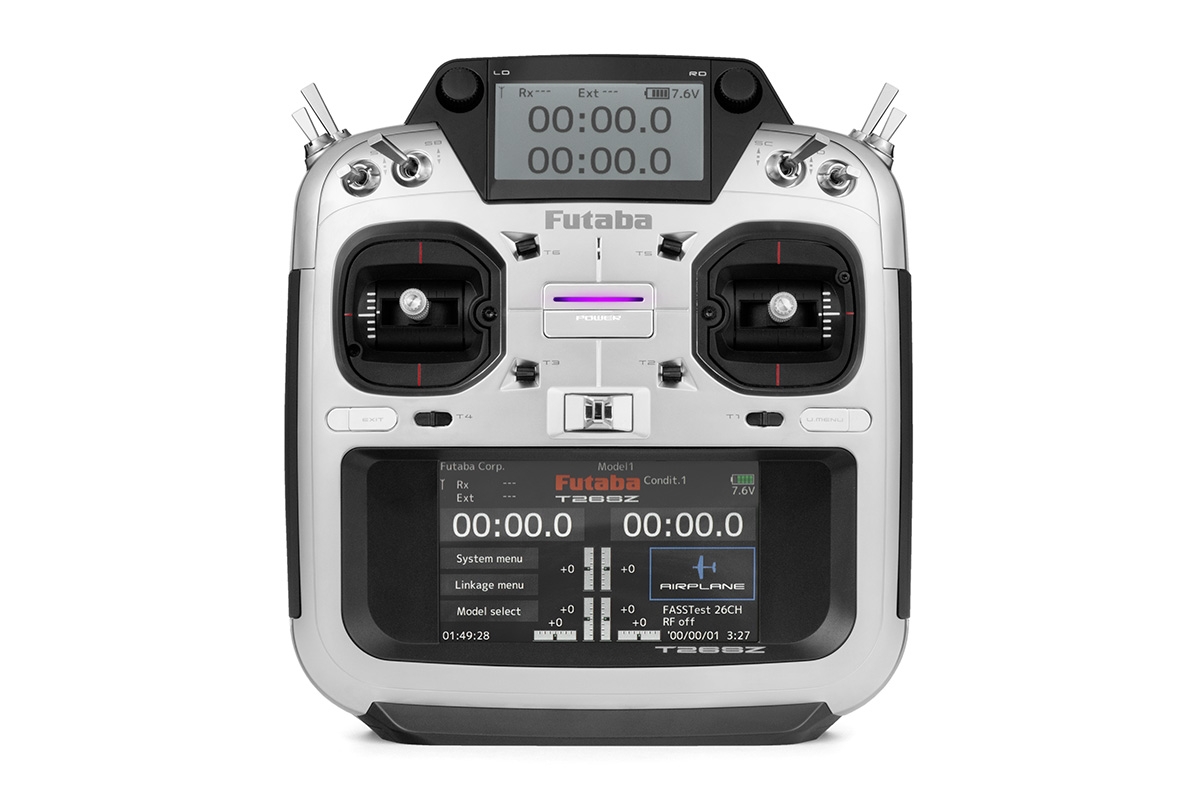

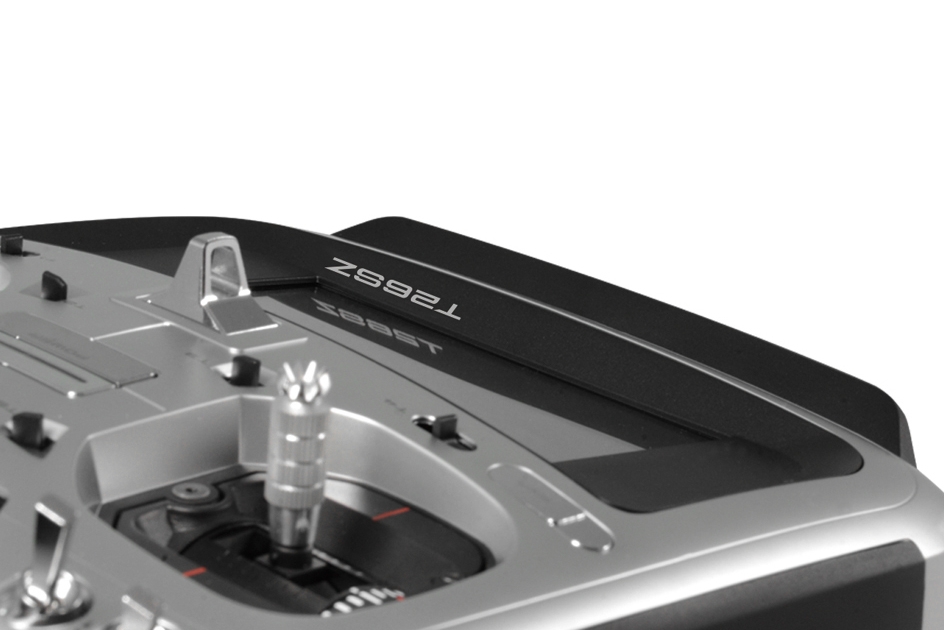

The T26SZ transmitter in a cabinet that fits perfectly in the hand is equipped with precise cross controls with adjustable detent/neutralization and tilt angle of the lever; instead of the usual potentiometers, magnetic encoders are fitted, ensuring a long service life and constant parameters. The T26SZ features 8 switches, 4 sliders, 6 digital trims and 2 rotary proportional controls.

For programming, a pair of buttons and a large backlit color touch LCD display ensure easy orientation in the intuitive menu. selected theometric or timer data can be displayed on the auxiliary LCD display on the top of the transmitter. The T26SZ has a memory for 30 models, unlimited expansion via microSD card, and a wide range of advanced mixing functions for aerobatic aircraft, gliders, helicopters and multicopters. In addition to the display of telemetry data on the main and auxiliary displays, a voice output of telemetry is available in the socket for the handset (not included in the kit).

The T26SZ is also equipped with a teacher-student socket and a socket for programming and setting S.BUS servos and gyroscopic systems CGY770/CGY755/CGY760R or GYA553. The USB charging/data socket on the top of the transmitter allows you to use the T26SZ directly as a controller for an RC simulator after connecting to a PC with a USB cable, without the need for an additional USB interface .

A 2S LiPo battery 2000 mAh is used for power, for charging you will need a regular USB charging adapter 5 V/2 A.

Function:

Transmission system FASSTest 26CH with 24 proportional and 2 switched DG channels , FASSTest 18CH with telemetry (16 proportional + 2 switched channels), super fast FASSTest 12CH (12 channels, telemetry only receiver supply voltage), T-FHSS Air with telemetry (16 proportional and 2 switched channels), S-FHSS 2.4GHz without telemetry (8 proportional channels), CRSF protocol for TBS Crossfire (one-way communication)

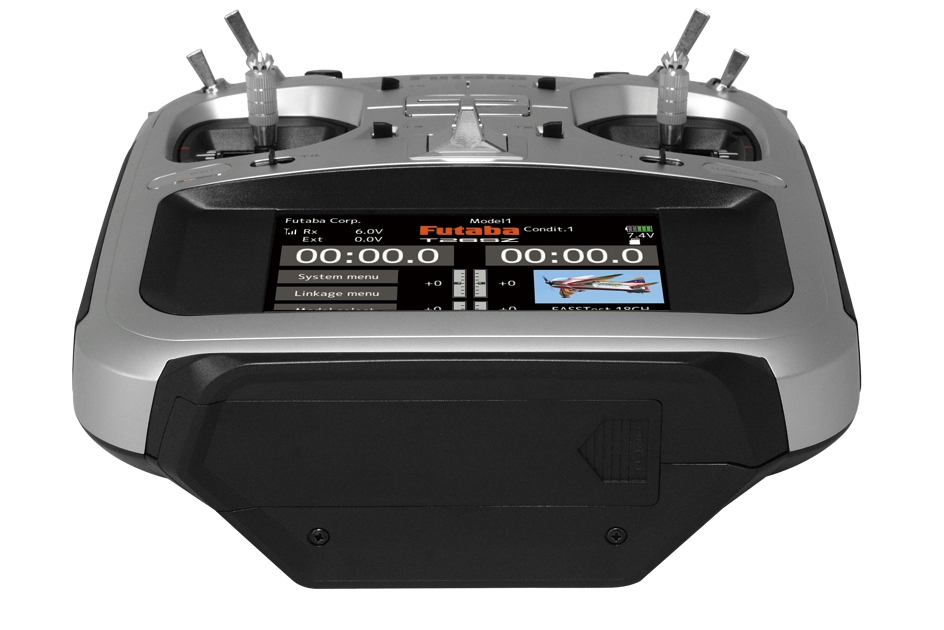

Color backlit LCD touch screen 4.3" for quick and easy programming

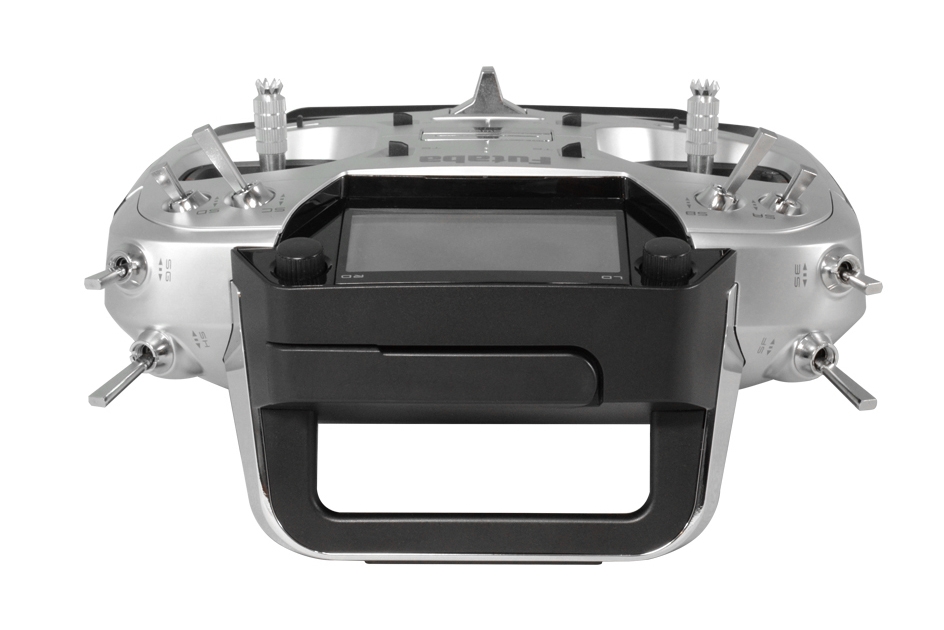

Auxiliary backlit LCD display for displaying telemetry/timer
Up to 8 flight modes for perfect control of your model in all conditions
Full telemetry with data transfer from a wide range of sensors with the option of writing to an SD card
Memory for 30 models, expandable without limits using an SD card
LiPo transmitter battery 7.4 V 2000 mAh
Telemetry voice output on the headphone socket (3.5 mm jack)
Updatable software
Freely assignable 4 sliding and 2 rotary controls, 8 switches, 6 digital trims
Precise cross controllers stored in 4 ball bearings with magnetic encoders instead of potentiometers
Freely adjustable mode of cross controls (to change the mode and adjust the strength of the neutralization springs, it is not necessary to open the transmitter box)
Teacher-student socket
A wireless teacher-student module allowing Futaba RC kits working in the T-FHSS Air transmission system to be used as student RC kits without the need for a cable connection
Socket for programming S.BUS servos, updating S.BUS2 servo firmware, updating telemetry sensor and receiver firmware (including setting receiver channel mode), setting up DLPH-2 receiver backup systems, setting up CGY770/CGY755/CGY760R and GYA553 gyro systems, or connecting systems TBS Crossfire long-range remote control (CRSF protocol, one-way communication)
USB data/charge socket for using the transmitter as a control device for an RC simulator on a PC and for charging the transmitter battery with the help of a USB 5 V/2 A mains adapter
MicroSD card slot 32MB-2GB (allows model memory expansion, model memory backup, transmitter firmware update, conversion of model data programmed on T14SG, FX-22, T12K transmitters, use of model data programmed on T16SZ, T16IZ, T16IZ SUPER, T18SZ transmitters, FX-32 and FX-36)
Model names with up to 15 characters
Subtrims with an added balancer function - the existing Subtrim function is supplemented with the possibility of setting the entire course of deviations along up to a 17-point curve for precise alignment of the movement of multiple servos controlling one rudder together (one servo servo is selected as a reference and the movement of the others is fine-tuned relative to it)
Reversing the direction of servo deflections
Setting end points and deflection limits
Servo speed setting
Data reset
Fail-safe emergency deflections
Servo speed setting
Double deflections
Setting the course of deviations after 2 exponential curves or 17-point curves.
Freely programmable mixes (10 mixes for each flight mode)
Engine shutdown
Safe idle
Logically linked switches
User menu (allows you to select only a few of the most used program functions for greater clarity)
Quick selection of mix switches (selected automatically by flipping the switch) and their on/off position
Ability to assign voice notifications to individual switch positions
Ability to assign an image to each model (displayed on home page and model selection page)
Servo monitor and servo tester
Two timers (stopwatch or timer)
Model operating time
Transmitter operating time
Throttle control position signaling when switched on
Adjustable display backlight
Calibration of cross controllers
Warning signaling – sound and vibration
Range control
2- or 3-receiver operation mode settings including two-/three-receiver operation with automatic backup when using R7208SB or R7308SB receivers

Program menu for aerobatic aircraft

13 wing types
3 types of tail surfaces
2 types of vertical tail surfaces (winglets)
Adjusting the flaps
Differentiation of aileron deflections
Aileron-flaps mix
Aileron-brake flap mix
Aileron-rudder mix
Mix aerodynamic brake-elevator
Rudder-aileron mix
Mix camber (curvature of the trailing edge)
Mix elevator-camber
Flap-elevator mix
Kicked twist
Butterfly tail surfaces
Mix ailevator (elevator for 2 servos)
Winglets
Mix Motor (for switch control with adjustable start and stop)
Intelligent interface for setting up the Futaba GYA553 gyro system on the transmitter display with the option of wired or wireless connection (after reading the data from the wired gyro beforehand, the number of functions is limited)
4 sequencers for control of retractable landing gear and similar applications with adjustable timing of movements for landing gear leg and landing gear door

Program menu for gliders

13 wing types
3 types of tail surfaces
2 types of vertical tail surfaces (winglets)
Adjusting the flaps
Differentiation of aileron deflections
Aileron-flaps mix
Aileron-brake flap mix
Aileron-rudder mix
Mix aerodynamic brake-elevator
Rudder-aileron mix
Mix camber (curvature of the trailing edge)
Mix elevator-camber
Flap-elevator mix
Butterfly mix
Mix butterfly-elevator
Trim mix 1 and 2
Butterfly tail surfaces
Mix ailevator (elevator for 2 servos)
Winglets
Mix Motor (for switch control with adjustable start and stop)
Intelligent interface for setting up the Futaba GYA553 gyro system on the transmitter display, with the option of wired or wireless connection (after reading the data from the wired gyro beforehand, the number of functions is limited)
4 sequencers for control of retractable landing gear and similar applications with adjustable timing of movements for landing gear leg and landing gear door

Program menu for helicopters

8 types of cycle board
9-point throttle curves
9-point curves of the collective
Acceleration
Autorotation
Adjustment of deviations and corrections for the cyclic plate.
Limit of deviations of cyclic control
Correction mixes for gas
Gyro gain control
Mix collective-needle
Revomix
Governor control
Intelligent interface for setting up the Futaba CGY755, CGY760R CGY770R gyro systems on the transmitter display with the option of wired connection (the same full range of functions as on the GPB-1) or wireless connection (after previously reading data from the gyro via cable, a limited number of functions)
4 sequencers for control of retractable landing gear and similar applications with adjustable timing of movements for landing gear leg and landing gear door

Program menu for multicopters

Flight modes
Adjustment of deviations
Setting double deflections
Freely programmable mixes
Gyro gain control
4 sequencers for control of retractable landing gear and similar applications with adjustable timing of movements for landing gear leg and landing gear door

Telemetry functions
